BiG X 480 | 530 | 580 | 630

The compact foragers from KRONE

  • Constant engine outputs from 490 to 626 hp
  • 6 intake rollers for extra safety and a top quality chop
  • Universal MaxFlow cutterheads: 20, 28 or 36 knives
  • Biogas cutterhead: 40 knives
  • KRONE VariStream: Spring-loaded floors for a continuous crop flow
  • KRONE VariQuick: engage and disengage the corn conditioner in an instant
  • KRONE StreamControl: optionally adjustable crop throw
  • 4WD option with 40 km/h wheel motors
  • Independent wheel suspension on rear axle for exceptional manoeuvrability
  • Perfect for on-road travel: 3 m machine width (depending on tyres)
  • Curved retainer bracket makes headers easy to attach and remove
Brand name: Krone
Model name: BiG X 480 | 530 | 580 | 630

Quality six times over

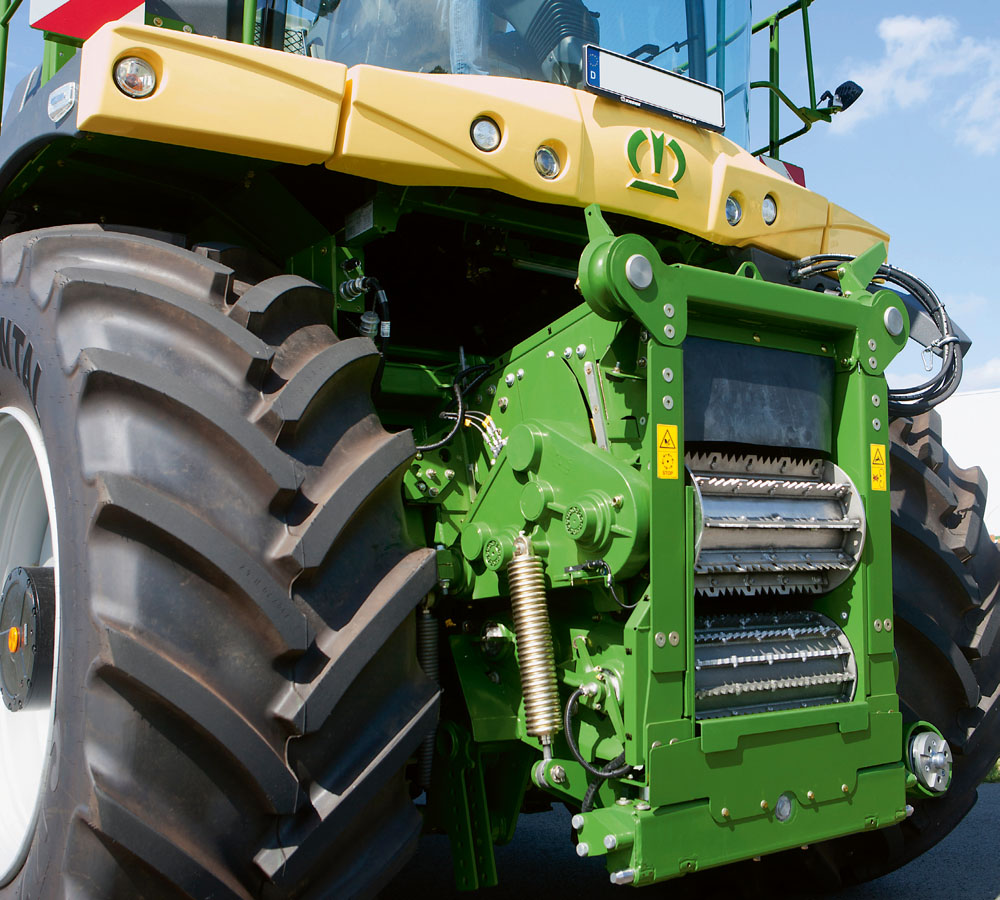

  • 6 pre-compression rollers for a top quality chop
  • Hydraulic drive shaft:
    LOC steplessly adjustable from cab
    Adjusts automatically with AutoScan
  • Maximum protection against foreign objects:
    Long path from metal detector to cutterhead
    Metal detection across entire chamber width



The universal cutterhead

  • For grass, pre-wilted material, whole crop silage and maize
  • Cutterheads with 20, 28 or 36 knives
  • Plenty of carrying space under the knife carriers: high throughput and smoother running even on uneven swaths
  • Knives quick and easy to insert and remove

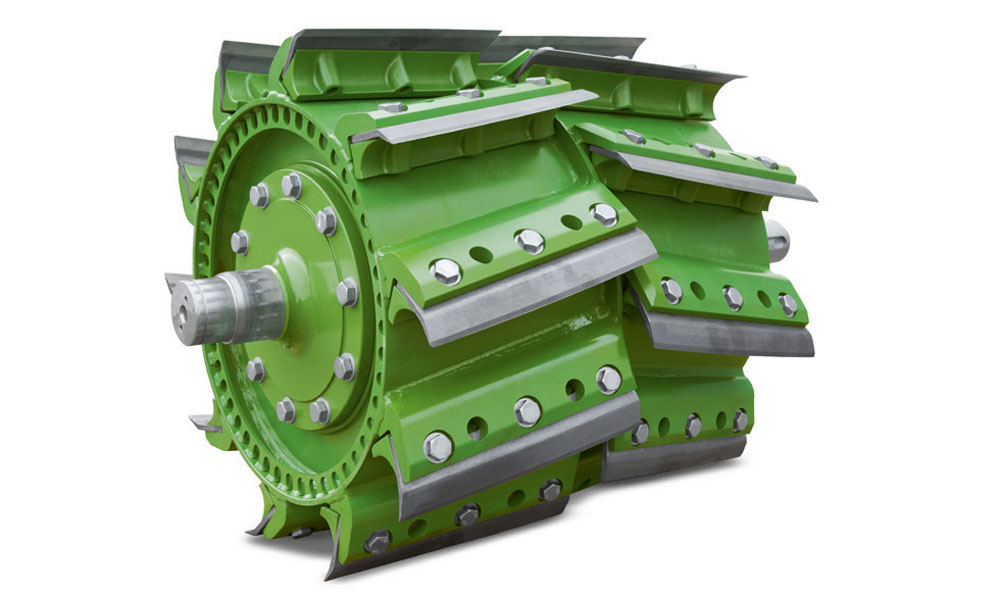

20-knife drum: This is the perfect drum for long LOCs, as called for in some countries.

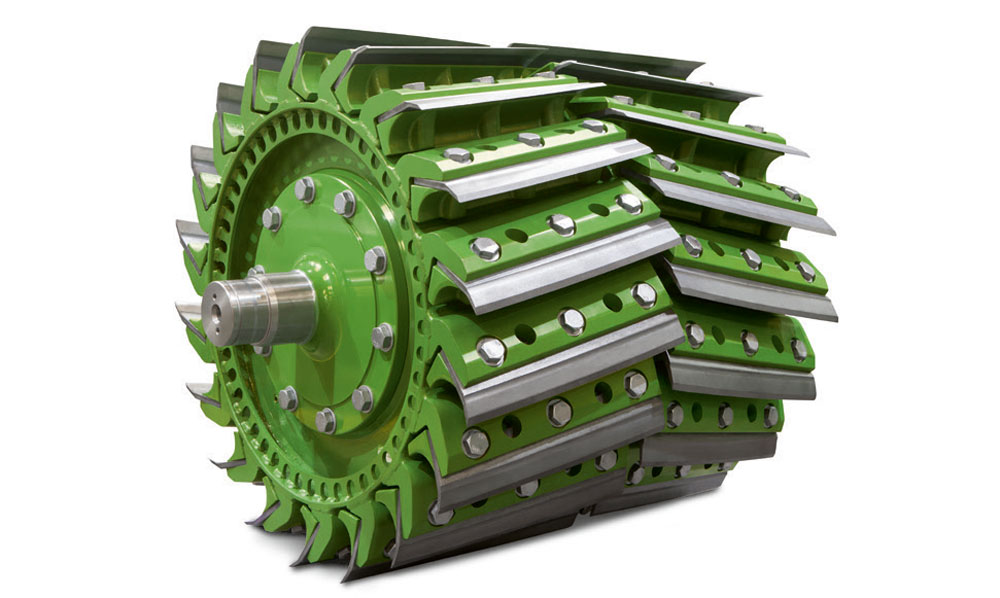

28-knife drum: This drum is standard specification and cuts grass to the right length even with half this number of knives.

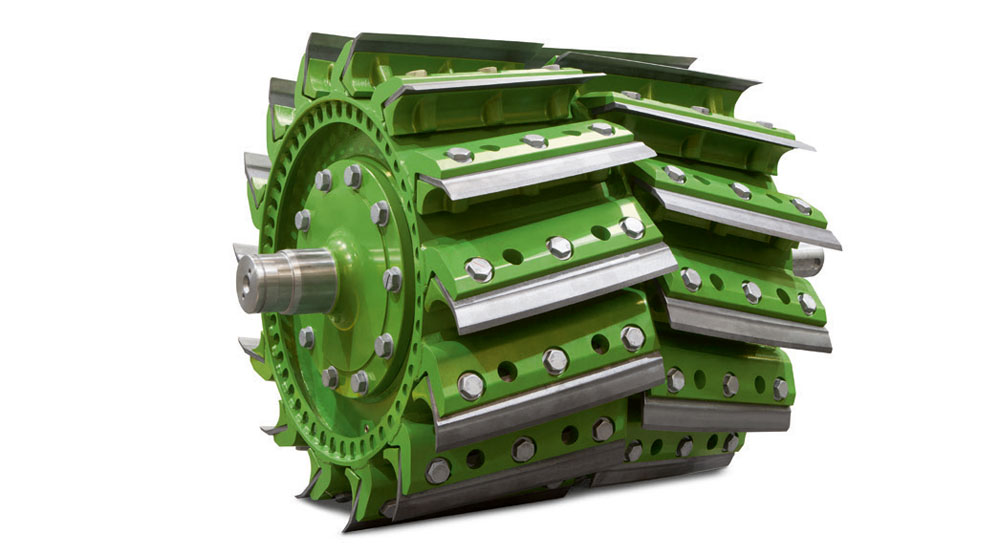

36-knife drum: Boosting throughputs and reducing fuel consumption, this 36-knife drum soon pays for itself.

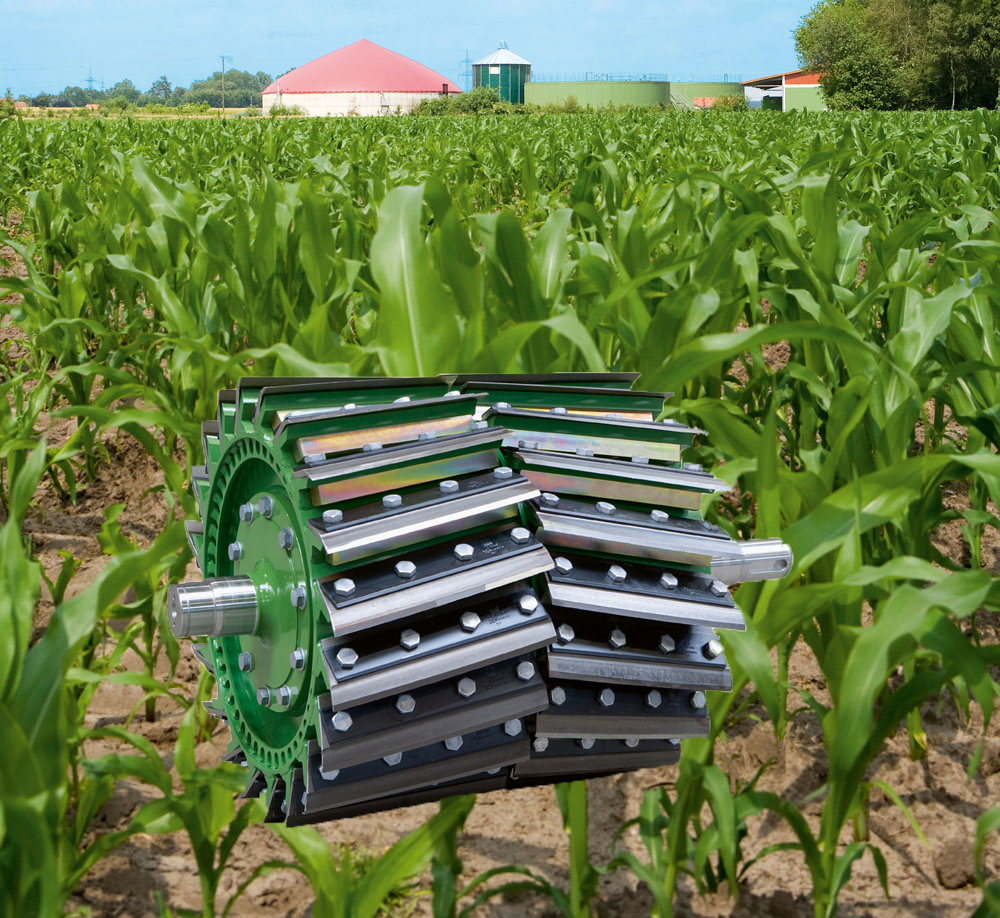

The special drum for short LOCs

  • 40 knives arranged in a chevron pattern
  • High cutting frequency
  • High inertia
  • Fewer overlengths
  • High gas yields
