Manure Forks

The Albutt range of Manure Forks covers models for use on Tractor Loaders, Telehandlers and Loading Shovels. A market leading specification ensures that the Albutt range of Forks provides a longer operating life whilst providing excellent usability. For Hardox tine models, we use genuine Hardox material to provide resistance to bending and breaking against conventional tines. Forged steel KV type tines can be specified which offer a better solution for moving bales. Forged tines are bushed into the tine holder as standard.

Ranges

B Series – For machines with a 4 tonne plus lift capacity
C Series – For machines with a 2-4 tonne lift capacity
E Series – For Tractor Loaders

Brand name: Albutt

Model name: Manure Forks

Solid fork back – keep carriage and hydraulics clean

Choice of Forged steel or genuine Hardox tines

Cut outs in fork back for visibility

Optional side tines; Hardox

Full width base wear strip protects tine holder

Hardox tines welded into tine holder

Forged tines bushed into tine holder

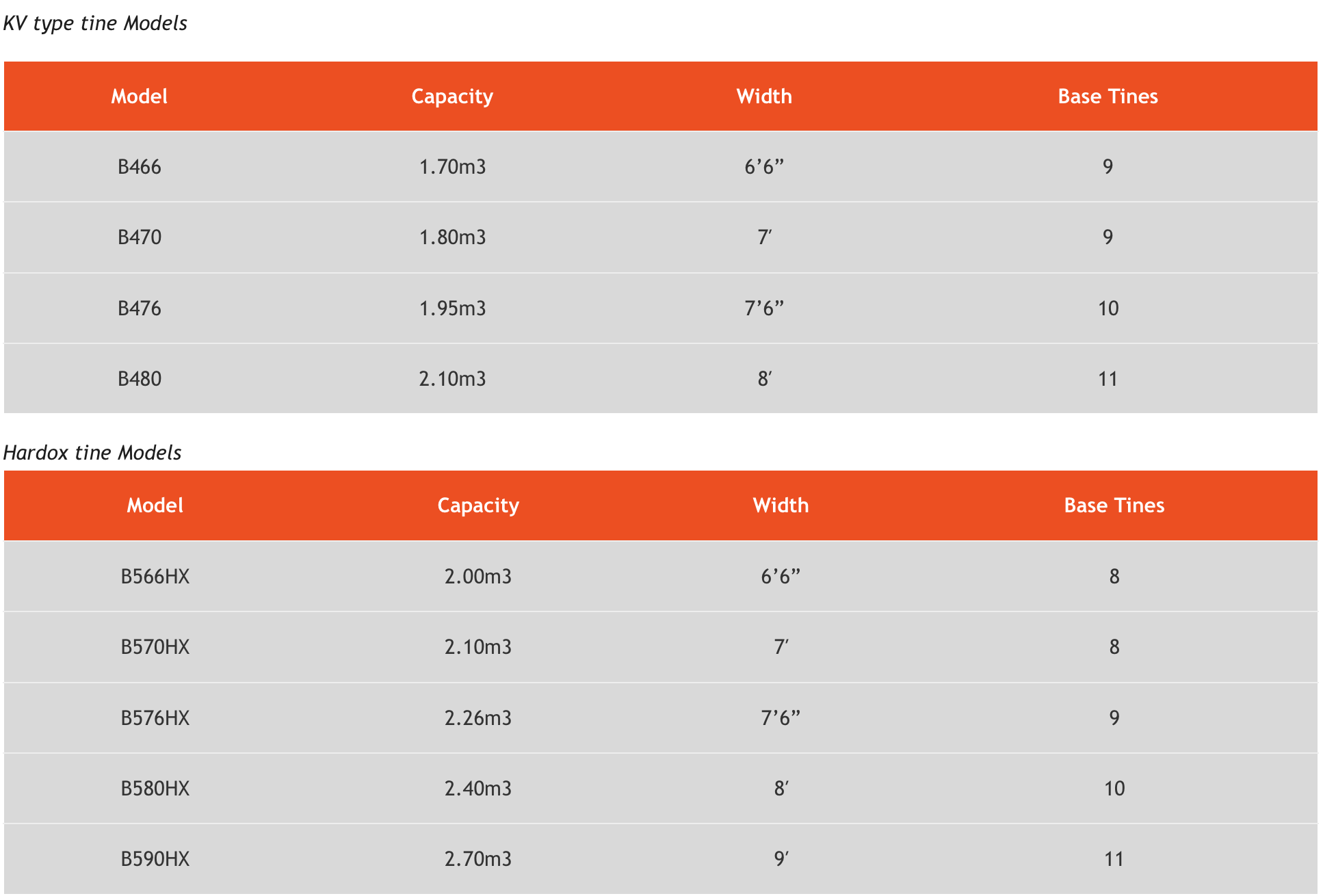

For machines with a minimum 4 tonne lift capacity
Choice of KV type tines or Hardox tines
Full width base wear pad
Base Tine length; Hardox 1240mm / KV type 1040mm

For machines with a minimum 2-4 tonne lift capacity
KV type tines as standard. Add ‘HX’ to any part no. for Hardox tines
Full width base wear pad
Base Tine length; Hardox 970mm / KV type 990mm

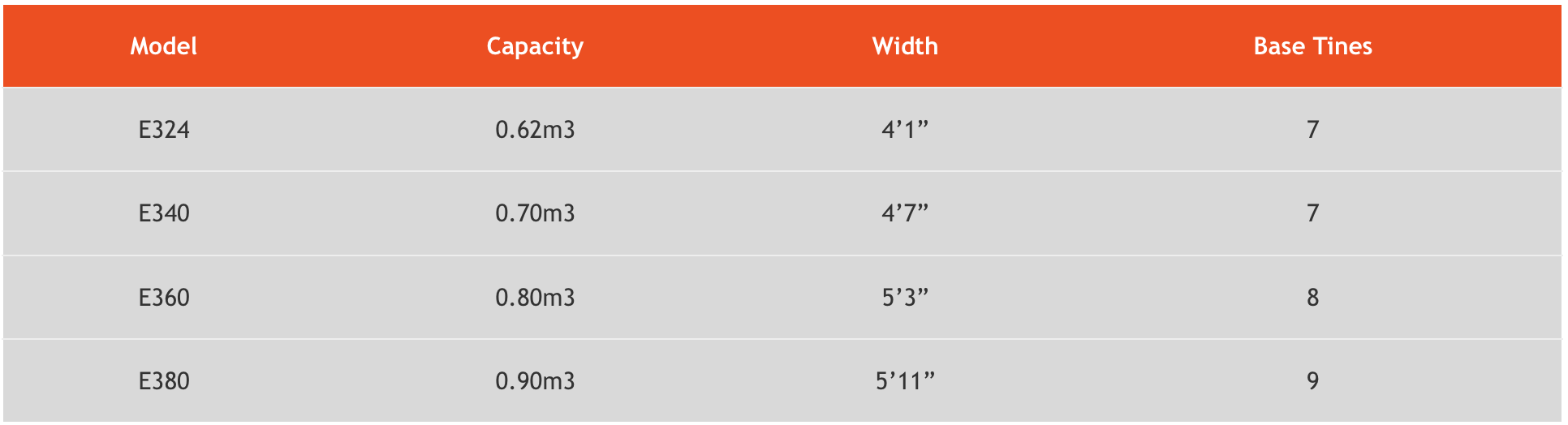

For Tractor Loaders
KV type tines as standard. Add ‘HX’ to any part no. for Hardox tines
Full width base wear pad
Base Tine length; Hardox 800mm / KV type 760mm
